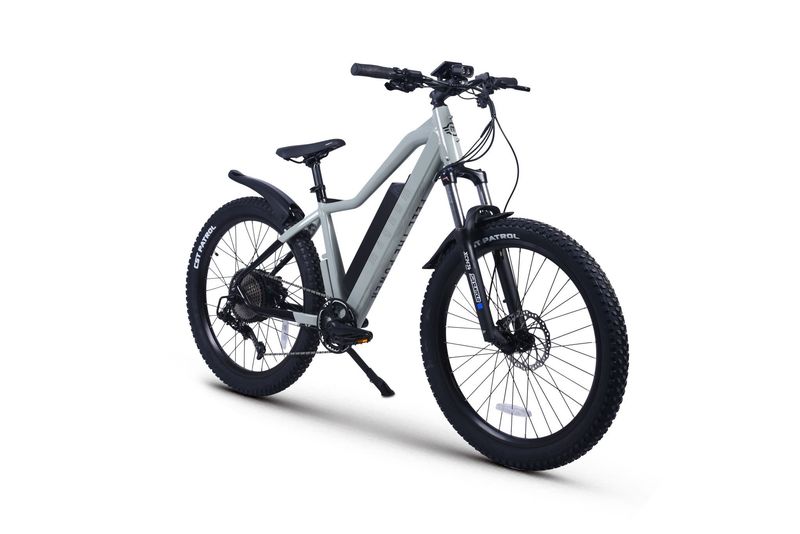

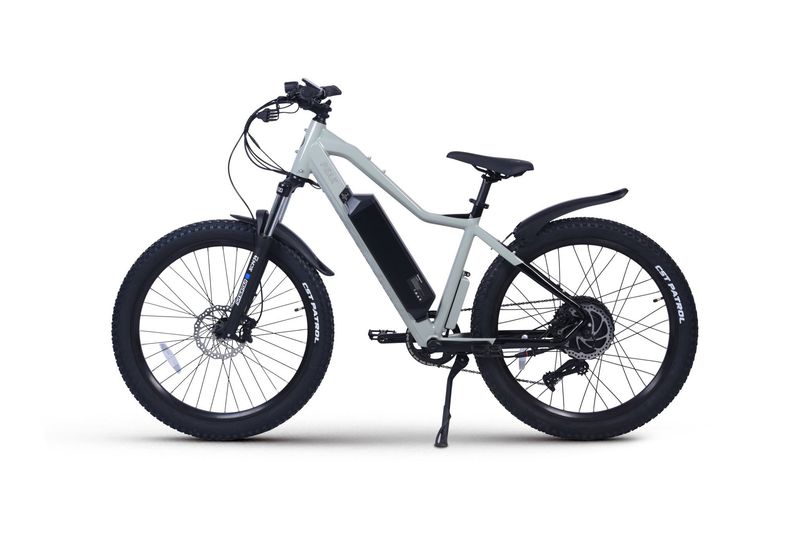

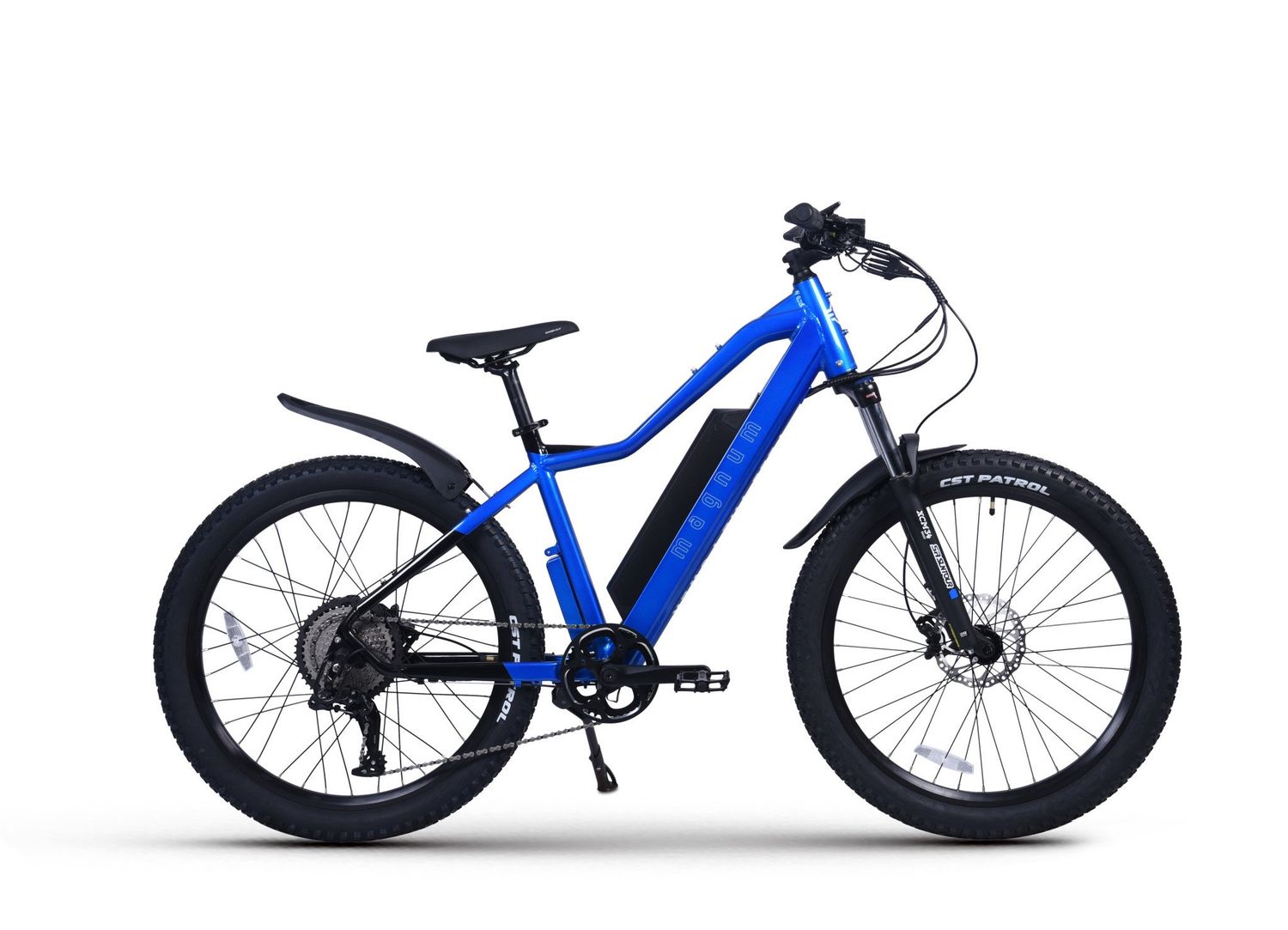

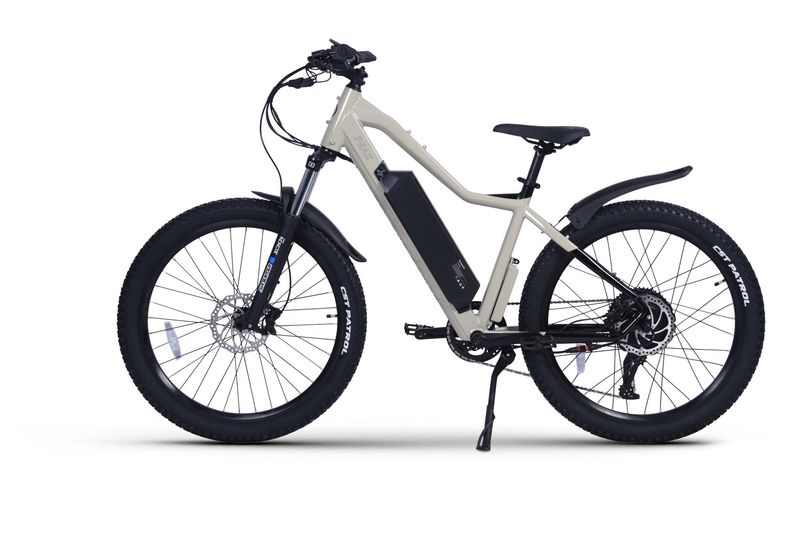

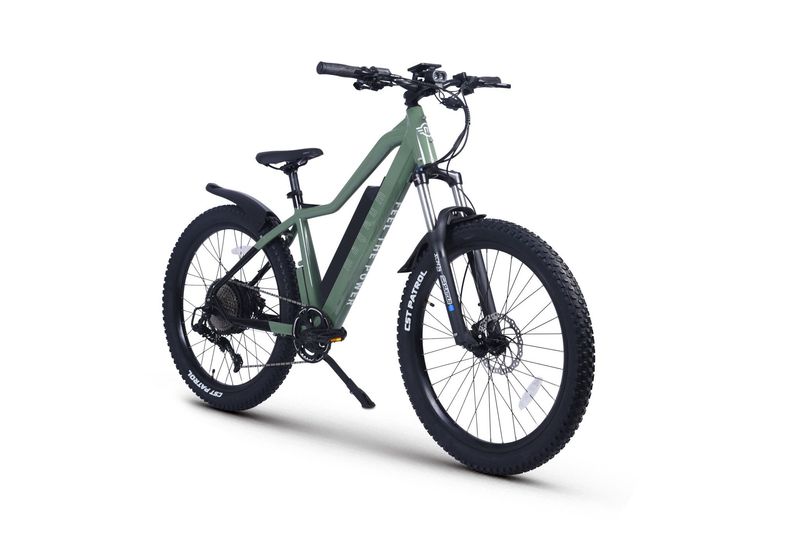

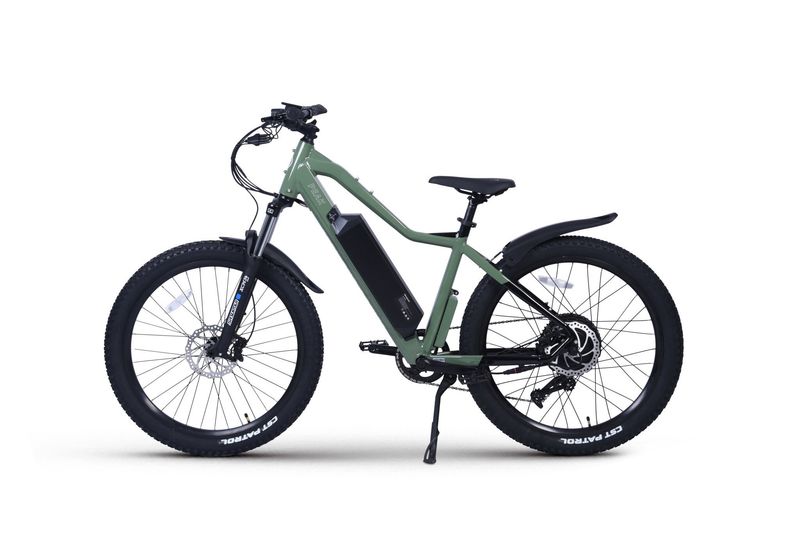

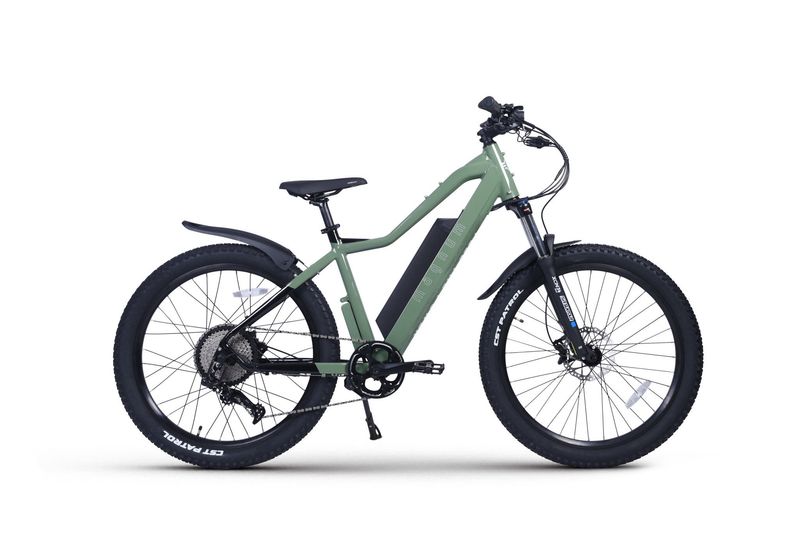

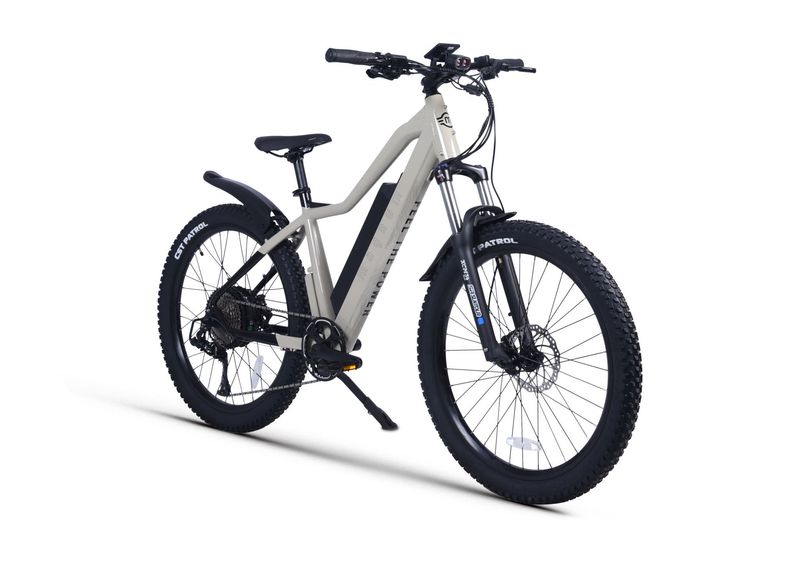

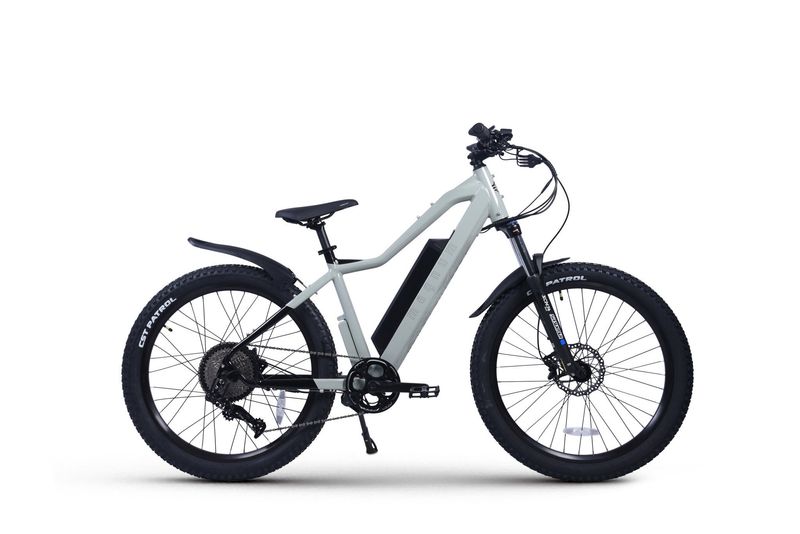

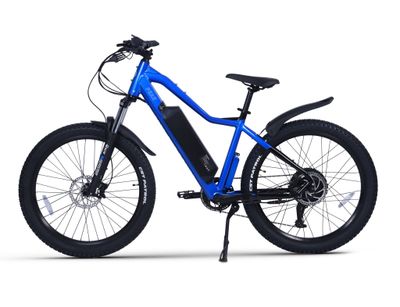

Magnum Peak T7
$2 999.00
Pre-order
The Peak T7 has a torque pedal assist sensor that combines power from the rider and the motor for the ultimate in smoothness and control. A wide range drive train, robust power system make the Peak T7 an ideal choice for trail riding.
Color
Out of stock, available for pre-order
Product Details
Brand: Magnum
UPC: 789554756228
Electronic Details
Motor Brand: Bafang
Motor Type: Rear Hub-Drive
Motor Nominal Output: 750 Watts
Motor Peak Output: 1000 Watts
Battery Brand: Samsung Cells
Battery Voltage: 48V
Battery Ah: 20Ah
Battery Wh: 960Wh
Battery Chemistry: Li-NMC
Battery Charge Time (from empty): 10 Hours
Minimum Range: 35 Miles (56 Kilometers)
Maximum Range: 65 Miles (105 Kilometers)
Display Type: Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD
Display Readouts: Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
Drive Mode: Torque Sensor Pedal Assist, Twist Throttle, Walk Mode
Top Speed: Up to 28 mph with Pedal Assist, 20 mph with Throttle
Lights: Front light controlled from the display. Rear light brake activated. Front Light: 40 lux, Rear Light: 20 lux (Rear light not included)
Mechanical Details
Frame material: Aluminum Alloy
Frame size: 19” (48 cm)
Fork Details: XCM34-Boost
Gearing details: A11-X 11-Speed
Shifter Details: A11-X 11-Speed
Crank: Aluminum Alloy, 42T, 170mm
Pedals: Wellgo
Stem: Magnum 60mm
Brakes: Logan Hydraulic Disc Brakes
Grips: Black
Saddle: Selle Royal Essenza+
Tire Brand: CST Patrol 27.5 x 2.8
Wheel size: 27.5”
Fenders: Front and Rear Included
Chain: KMC 11-Speed
Measurements
Seat Tube: 19” (48 cm)
Reach: 14.5” (37 cm)
Stand Over Height: 31” (78.5 cm)
Virtual Top Tube Length: 23.25” (59 cm)
Min Saddle Height: 22” (56 cm)
Max Saddle Height: 31” (78.5 cm)
Width: 28.75” (73 cm)
Wheelbase: 45.75” (116 cm)
Length: 74” (188 cm)
Total Weight: 66 lbs. (30 kg)
Battery Weight: 9 lbs. (4 kg)
Recommended Minimum Rider Height: 5’6”
