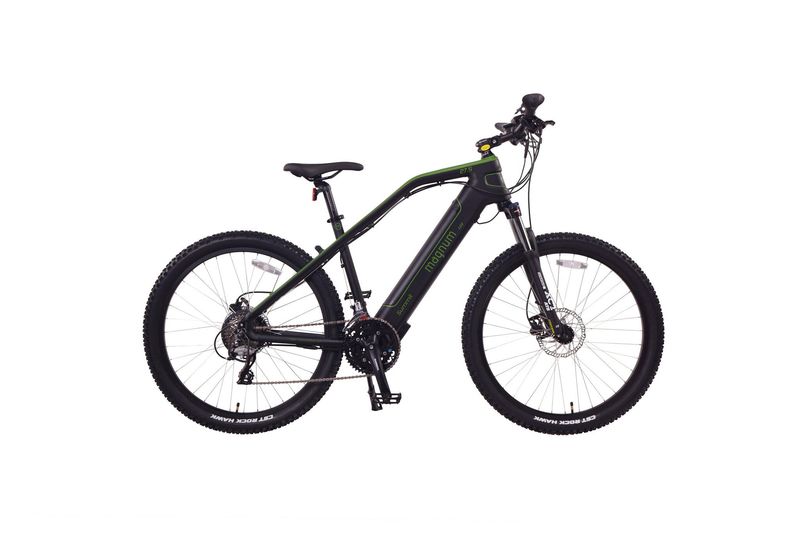

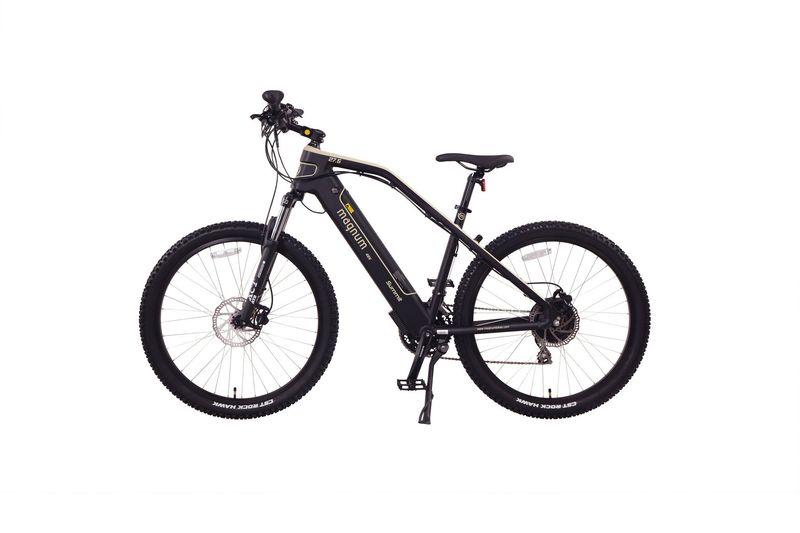

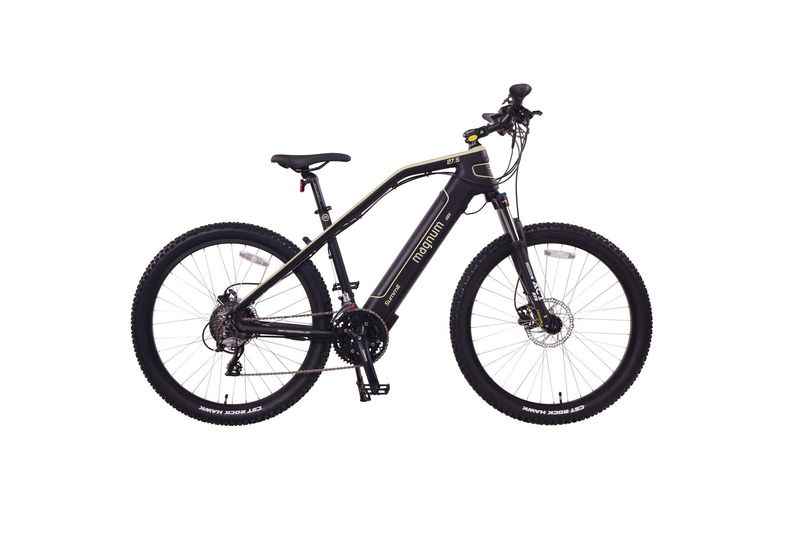

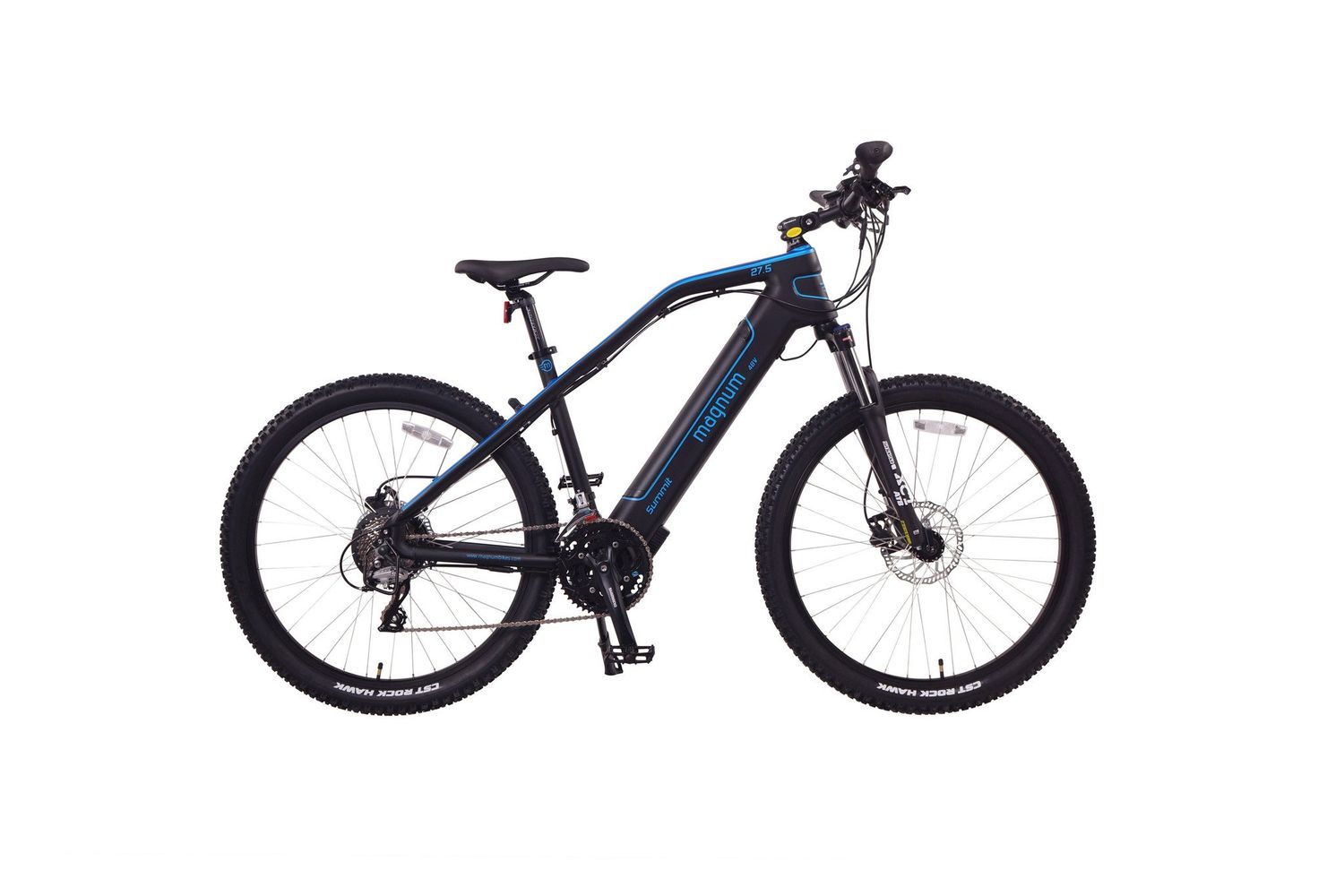

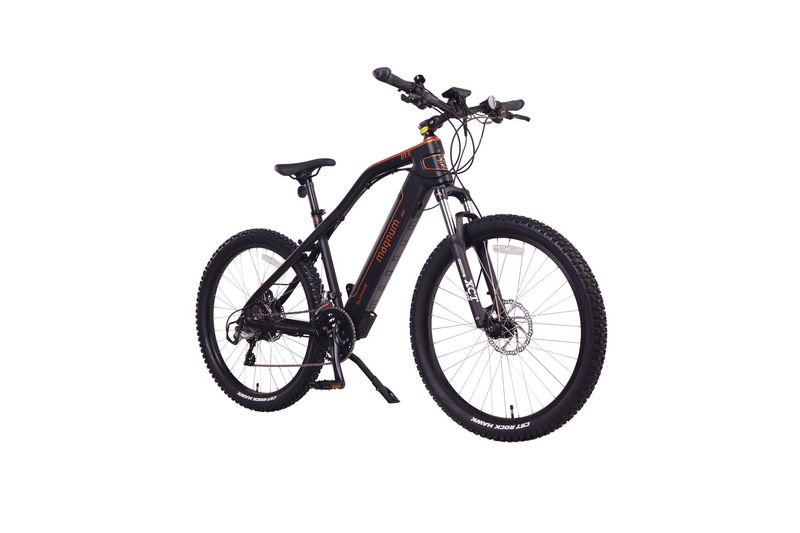

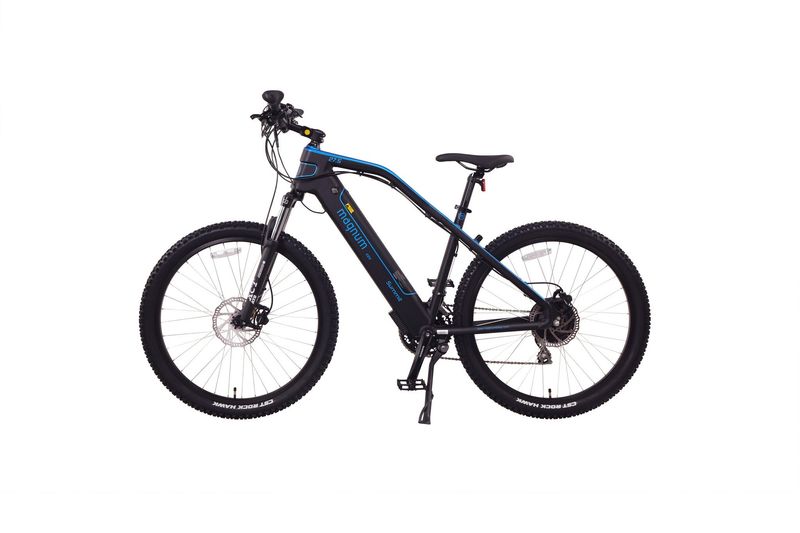

Magnum Summit
$2 199.00
Pre-order
The Summit 27 trail/mountain e-bike's stand-out features are the fully integrated battery for a sleek design and a range of accent colors span the top of the down tube. 48v, 500w power system with max speed of 25 MPH with pedal assist and 20 MPH throttle.
Color
Size
Out of stock, available for pre-order
Product Details
Brand: Magnum
UPC: 726152302334
Electronic Details
Motor Brand: Das-Kit
Motor Type: Geared Rear Hub
Motor Nominal Output: 500 Watts
Motor Peak Output: 750 Watts
Battery Voltage: 48 Volts
Battery Ah: 13Ah
Battery Wh: 624Wh
Battery Chemistry: Li-NMC
Battery Charge Time (from empty): 6.5 Hours
Minimum Range: 25 Miles (40 Kilometers)
Maximum Range: 50 miles (80 Kilometers)
Display Type: Das-Kit C7, Backlit, Monochrome LCD
Display Readouts: Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage
Drive Mode: Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
Top Speed: 25 mph with Pedal Assist, 20 mph with Throttle
Mechanical Details
Frame material: Aluminum Alloy
Frame size: 18” (46 cm)
Fork Details: SR Suntour XCT ATB 27.5”
Gearing details: Shimano 8-Speed
Shifter Details: Shimano 8-Speed
Crank: Prowheel 3-Chainring Aluminum Alloy
Pedals: Wellgo
Stem: Adjustable w/tools
Brakes: Tektro Hydraulic Disc Brakes
Grips: Velo Flat Rubber
Saddle: Promax
Tire Brand: CST Rock Hawk
Wheel size: 27.5”
Fenders: Not Included
Chain: KMC
Measurements
Seat Tube: 18” (46 cm)
Reach: 15.75” (40 cm)
Stand Over Height: 34.25” (87 cm)
Virtual Top Tube Length: 23.25” (59 cm)
Min Saddle Height: 21.75” (55 cm)
Max Saddle Height: 30” (76 cm)
Width: 30” (76 cm)
Wheelbase: 44” (112 cm)
Length: 73.25” (186 cm)
